MeshEdit







https://www.food4rhino.com/en/app/meshedit





Meshedit is a set of components which extend Grasshopper's ability to work with meshes.

included components:

utilities:

• Mesh from points
• Mesh cull unused vertices
• Mesh flip
• Mesh unify normals
• Mesh weld vertices with threshold

analysis:

• Mesh Area
• Mesh Volume
• Mesh explode
• Mesh convert quads to triangles
• Mesh add attributes
• Mesh extract attributes
• Mesh find naked edges

Triangulation:
"based on MIConvexHull by David Sehnal, Matthew Campbell"

• Convex Hull Points 2D/3D
• Convex Hull Mesh/Plankton Mesh
• Delaunay
• Delaunay Tetrahedron Polyline/Plankton Mesh
• Voronoi Polyline/Plankton Mesh

If you find anything else useful please let us know!

To install:

• In Grasshopper, choose File > Special Folders > Components folder. Save the gha file there.
• Right-click the file > Properties > make sure there is no "blocked" text
• Restart Rhino and Grasshopper





Rhino7에 설치하였다.



처음에는 Grassshopper File>Special folders > components folder인

'C:\Users\User\AppData\Roaming\Grasshopper\Libraries'에

Meshedit

파일을 붙여넣었는데 load가 안되었다.





'C:\Users\yourUserName\AppData\Roaming\McNeel\Rhinoceros\packages\7.0\MeshEdit-Components\2.0.0.0'에 붙여넣었다.



Rhino를 다시 실행한 다음 Grasshopper를 실행하니 다음과 같은 메시지가 나온다.



Grasshopper has found two identical files. Only one of these can be loaded. You can either choose to load one of these files this time and be confronted with this message again the next time Grasshopper starts, or you can choose to delete one af them now.



일단 왼쪽것을 Delete하였다.

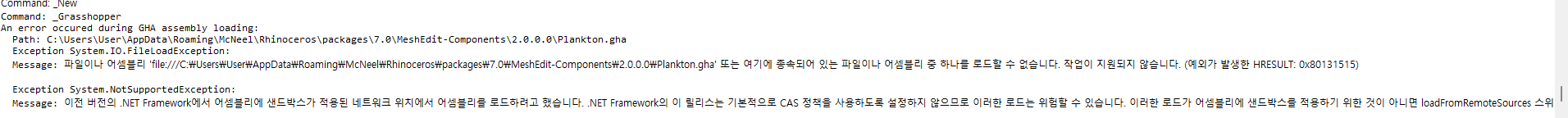

Grasshopper를 실행하니 Rhino command창에 아래와 같은 메시지가 나온다.





Meshedit2000.gha

Plankton.dll

Plankton.gha

PlanktonGh.dll



파일 속성에서  차단 해제(K) 체크한다.

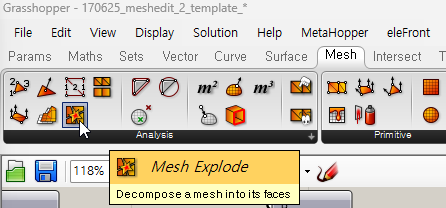

Mesh Explode component







Meshedit설치는 다음 폴더에 해야 한다.

Rhino7

'C:\Users\yourUserName\AppData\Roaming\McNeel\Rhinoceros\packages\7.0\MeshEdit-Components\2.0.0.0'



Rhino8

'C:\Users\yourUserName\AppData\Roaming\McNeel\Rhinoceros\packages\8.0\MeshEdit-Components\2.0.0.0'
